Steering Oil Maintenance For Massey Ferguson Tractors
When it comes to agricultural machinery, Massey Ferguson tractors, particularly models like the MF 235, MF 240, MF 360, MF 350, MF 260, MF 385, MF 375, and MF 385 4WD, are trusted allies for farmers. Understanding the crucial aspects of checking and changing the steering oil in these models is essential for maintaining their performance and longevity.

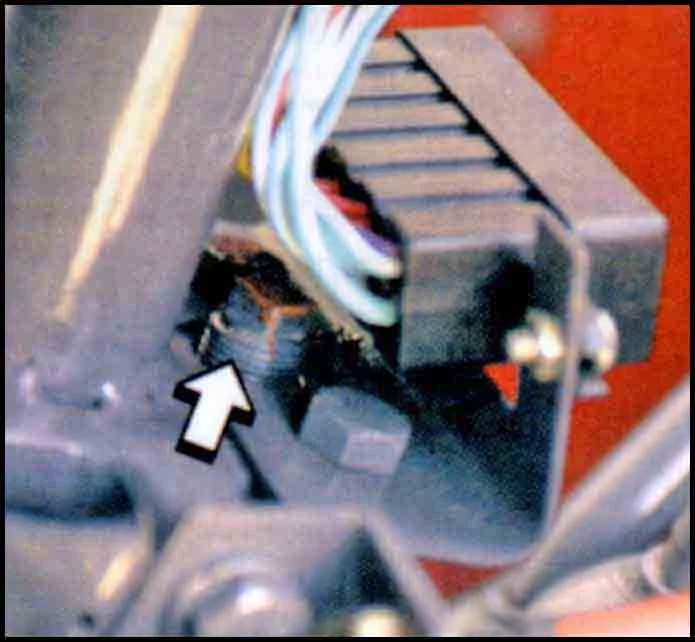

Checking Steering Oil in MF-240 and MF-260 Tractors
The mechanical steering system of the MF-240 and MF-260 tractors is renowned for its simplicity and efficiency. To inspect the oil level in the steering box, follow these steps:
- Locate and remove the designated plug on the steering box.
- Check if the steering box is completely filled with oil.
- If the oil level is low, refill it appropriately.
- Tighten the plug securely after refilling.

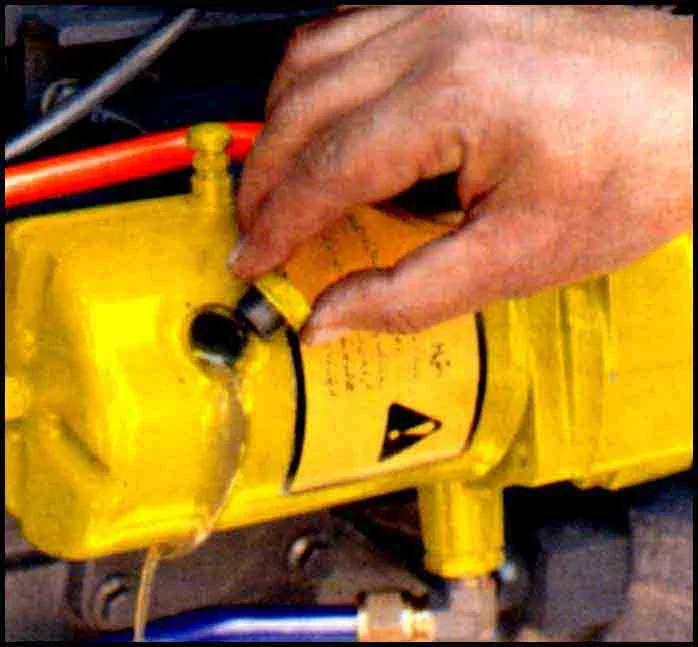

Checking Steering Oil in MF 350 Plus, MF 360, MF 375, and MF 385 Tractors
For the more robust models equipped with power steering, such as the MF-360, MF-375, and MF-385 4WD, a different approach is needed:
- Locate the oil reservoir plug adjacent to the steering pump at the front of the engine.
- Remove the plug and observe if oil trickles slowly out of the hole.
- If the oil level is low, replenish it accordingly.
- Once checked, place the plug back in and tighten it securely.

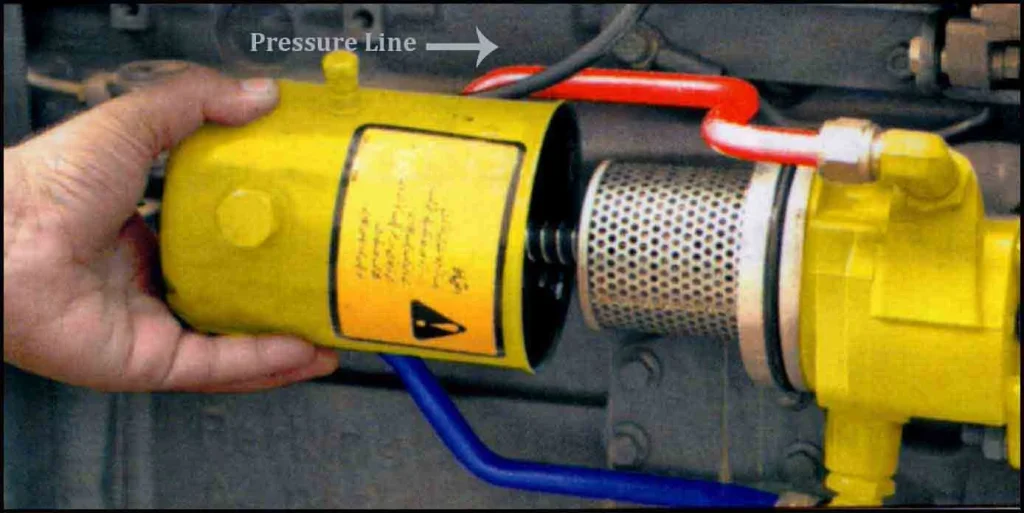

How to Remove Power Steering Oil
When it’s time for a comprehensive power steering oil change, follow these steps:
- Remove the bolts behind the steering box.
- Take out the filter.
- Drain the old oil completely.
- This ensures a fresh start for your tractor’s power steering system.
How to Replenish Steering Oil
Replenishing the oil is crucial for maintaining optimal performance:
- Remove the reservoir plug.
- Start the engine.
- Straighten the front wheels.
- Turn the steering wheel clockwise in a full circle.
- Turn off the engine.
- Replenish the oil to the appropriate level.
- This process ensures a well-lubricated and responsive steering system.
Oil Capacity
Understanding the oil capacity is key to maintaining the power steering system. For instance, the steering pump reservoir in the MF-385 2WD and MF-385 4WD can hold up to 2 liters of oil. It’s recommended to change the power steering oil, along with the filter, after every 250 hours of operation to keep the system in top-notch condition.
By following these guidelines, you can ensure that your Massey Ferguson tractor remains reliable and efficient, providing optimal performance for all your farming needs.
