Description
| Specifications & Details | |||
|---|---|---|---|
|
|
Spec. A |
Spec. B |
Spec. C |
|
Type |
Hyd. Tipping |
Hyd. Tipping |
Hyd. Tipping |
|
Capacity |
4 – Ton |
5 – Ton |
8 – 10 Ton |
|
Vessel Size |
10′ x 6.5′ x 2′ |
10′ x 6.5′ x 2′ |
12′ x 7′ x 2.5′ |
|
Floor |
MS Sheet SWG 10 |
|
|
|
Side Wall |
MS Sheet SWG 12 |
|
|
|

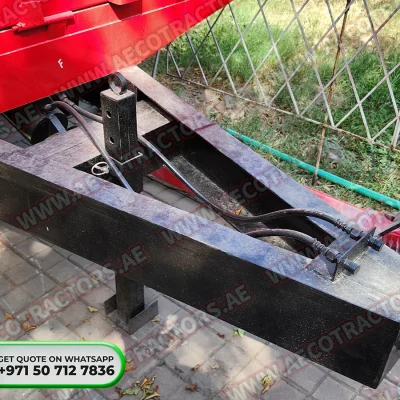

Chassis Frame |
|||
|
Lower Channel: |
8′ x 3′ |
8′ x 3′ |
10′ x 3′ |
|
Upper Channel: |
6′ x 3′ |
6′ x 3′ |
6′ x 3′ |
|
Axle Size |
|||
|
Length: |
52″ |
52″ |
56″ |
|
Outer Dia: |
5″ |
5.5″ |
6″ |
|
Wall Thickness: |
3/8″ |
3/8″ |
3/8″ |
|
Rims: |
|||
|
Qty |
2 |
2 |
4 |
|
Size |
8.25-20 |
8.25-20 |
8.25-20 |
|

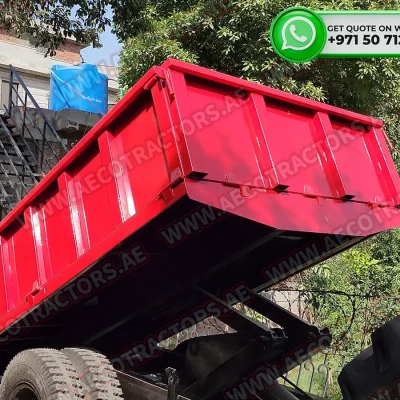

Tipping Device |
Double acting heavy duty locally mage Ram with mechanical linkage. |
||
|
Tipping Angle |
55 Degrees. |
||
|
Maximum Lift Time |
10 Seconds at 1500 – 1789 rpm of Tractor Engine to its full height in empty Condition. |
||
|
Hydraulic Kit: |
|
||
|
For Trolley: |
|
||
|
Spool Valve: |
Imported from USA, Italy or U.K. Minimum Rod Dia, 20mm |
||
|
Selector Valve: |
Imported from USA, Italy or U.K. Minimum Rod Dia, 20mm. |
||
|
Hyd. Hoses: |
Imported from above countries, the crimping and Hoses should bear a pressure of 4000 psi. There should be no joint between two connections. |
||
|
Quick Attachment Coupler Set: |
Imported |
||
