Description

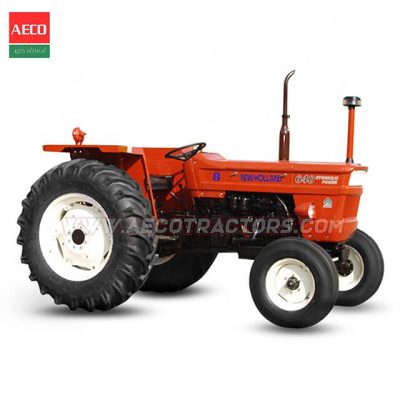

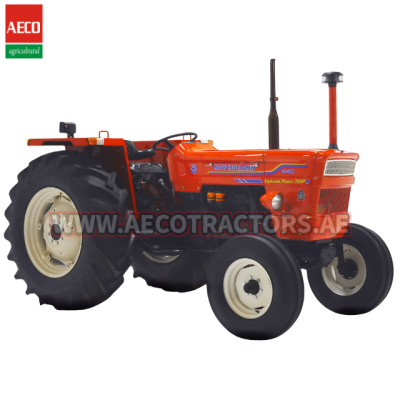

New Holland 640 Tractor Specifications | Fiat 640 Tractor Data
New Holland 75 HP Specifications
Performance & Weight
| Engine power at flywheel | 75 HP |
|---|---|
| Operating weight | 2,070 kg |
Engine
| Engine model | New Holland 8045.06 |
|---|---|
| Type | 4-stroke, direct injection diesel |
| Number of cylinders | 4 |
| Bore × stroke | 100 × 115 mm |
| Displacement | 3,613 cc |
| Dynamic balancer | Flyweight type |
| Compression ratio | 17:1 |
| Maximum torque at 1,400 rpm | 24.9 kgm |
| Cylinder liners | Dry type |
| Oil cooler | Included |
| Cooling system | Water |
| Radiator | Five-row brass tube and copper fin |
| Lubrication | Forced-feed system |
| Hydraulic pump power outlets | Two outlets on timing cover |
| Fuel injection pump | Distributor type with mechanical speed governor |
| Exhaust muffler | Vertical |
| Crankshaft | Five bearing |
Filters
| Air filter | Oil bath with pre-cleaner |
|---|---|
| Fuel filter | 2 replaceable cartridges |
| Oil filter | Easy-to-change, continuous-flow cartridge |
Clutch
| Type | Dual plate, dry type |
|---|---|
| Controls | Separate transmission pedal and PTO hand lever |
| Plate diameter | 11 inches |
| Plate facing | Asbestos compound, as listed in the supplied sheet |
Transmission
| Gearbox | Constant-mesh gears |
|---|---|
| Number of gears | 8 forward, 2 reverse |
| Synchromesh | 3rd, 4th, 7th and 8th speeds |
| Gear controls | Double control lever |
| Bevel gear | 12/47 |
| Differential lock | Pedal actuated with automatic disconnection |
| Final drives | Spur gear |
| Starter safety switch | Gearbox mounted |
Track Adjustment
| Front track — 8 positions | 1,320 / 1,420 / 1,520 / 1,620 / 1,720 / 1,820 / 1,920 / 2,020 mm |
|---|---|
| Rear track — 8 positions | 1,320 / 1,420 / 1,520 / 1,620 / 1,720 / 1,820 / 1,920 / 2,020 mm |
Steering
| Type | Hydro-assisted with independent circuit |
|---|---|
| Minimum turning radius with brakes | 3,400 mm |
| Minimum turning radius without brakes | 3,700 mm |
Power Take-Off
| Type | Fully independent |
|---|---|
| PTO speed | 540 rpm at 2,160 engine rpm |
| Shaft diameter | 35 mm / 1⅜ inches |
| Number of splines | 6 |
| High-speed drive | Same speed as engine, for high-speed implements |
| High-speed drive shaft diameter | 35 mm / 1⅜ inches |
Hydraulic Lift
| Controls | Draft and position control |
|---|---|
| Draft sensing | Through top link |
| Pump type | Gear type, driven by engine crankshaft |
| Pump capacity at 2,400 engine rpm | 24.8 L/min |
| Relief valve opening pressure | 190 kg/cm² |
| 3-point linkage | Category I–II |
| Response control | Included |
| Sway control | Sway chains |
| Lift lever | With lock bracket |
| Maximum lifting capacity | 1,700 kg with lower links horizontal |
Driver’s Seat & Fenders
| Seat | Fully upholstered with parallelogram suspension, adjustable to the driver’s weight |
|---|---|
| Fenders | Square type with flat top |
Capacities
| Fuel tank | 54 L |
|---|---|
| Engine oil | 11.5 L |
| Hydraulic transmission | 18 L |
| Rear axle | 4 L per side (8 L total) |
| Air cleaner | 1 L |
| Power steering | 1.5 L |
Brakes
| Service brakes | Dry band type, mechanically operated |
|---|---|
| Parking brake | Manual lever |
Tyres
| Front | 7.50-16 |
|---|---|
| Rear | 16.9/14-30 |
Body
| Hood | Side-hinged cover for engine inspection |
|---|---|
| Front grille | Removable for quick access to the air cleaner and battery |
Lighting System
| Headlights | 3 positions: parking, low beam and high beam |
|---|---|
| Additional lighting | Rear parking lights and direction indicators |
| Instrument panel indicators | Blue high-beam warning light, low oil pressure and battery charging lights |
Electrical System
| Starting system | 12 V |
|---|---|
| Starter motor | 4.7 HP (3.5 kW) |
| Alternator | 400 W |
| Battery | 108 Ah |
Front Axle
| Type | Inverted U section, telescopic |
|---|
FIAT 640 Tractor Engine & Power
Robust Engine Performance
The New Holland 640 Tractor is powered by a formidable engine that sets it apart in the agricultural machinery market. Known for its reliability and efficiency, this tractor’s engine is designed to tackle the most demanding farming tasks. The Fiat 640 horsepower rating ensures that you have ample power to perform various operations, from heavy plowing and tilling to transporting substantial loads. This robust performance allows you to complete your tasks more quickly and efficiently, maximizing your productivity.
Advanced Fuel Efficiency
One of the standout features of the NH 640 engine is its advanced fuel efficiency. In an industry where operational costs can quickly add up, the ability to save on fuel without sacrificing performance is invaluable. The engine’s design focuses on optimizing fuel consumption, ensuring that you can work longer hours without the need for frequent refueling. This efficiency not only reduces operational costs but also minimizes downtime, allowing you to maintain a steady workflow.
Smooth and Reliable Operation
The engine of the New Holland 640 Tractor is engineered for smooth and reliable operation. Whether you’re working on flat terrain or navigating through challenging conditions, the tractor delivers consistent performance. The advanced engineering behind the engine ensures that it runs smoothly even under heavy loads, reducing wear and tear and extending the lifespan of the tractor. This reliability means fewer breakdowns and maintenance issues, providing you with peace of mind and ensuring that your farming operations run smoothly.
Power for Diverse Applications
The versatility of the Fiat 640 engine makes it suitable for a wide range of agricultural applications. From planting and fertilizing to harvesting and transporting, the engine’s power and efficiency enable the tractor to handle multiple tasks effortlessly. This adaptability means you can rely on the New Holland 640 Tractor for various functions throughout the farming cycle, making it a valuable asset for any farm.
Enhanced Transmission System
Complementing the powerful engine is an advanced transmission system that provides precise control over the tractor’s speed and power. The smooth gear transitions ensure that you can adjust the tractor’s performance to match the specific requirements of each task. Whether you need high power for heavy-duty operations or a gentler approach for more delicate work, the transmission system allows for seamless adjustments, enhancing the tractor’s overall versatility.
In summary, the New Holland 640 Tractor offers a powerful and efficient engine that is designed to meet the demands of modern farming. Its robust performance, fuel efficiency, and reliability make it an excellent choice for farmers seeking to enhance their productivity and operational efficiency. Trust in the power and capability of the NH 640 to support your agricultural endeavors with unmatched performance and dependability.
Reliability and Durability of the NH 640 Tractor
Built to Last
The New Holland 640 Tractor is synonymous with durability and reliability. Constructed with high-quality materials and advanced engineering, this tractor is designed to withstand the rigors of daily farming activities. Whether you are working in extreme weather conditions or on challenging terrains, the NH 640 is built to endure. Its robust construction ensures that it can handle the toughest tasks without compromising on performance, making it a long-term investment for your farm.
Dependable Performance
One of the key aspects of the Fiat 640 Tractor is its dependable performance. Farmers need equipment they can rely on, and the NH 640 delivers consistently, day in and day out. The tractor’s engine and transmission system are designed for minimal maintenance, reducing the risk of unexpected breakdowns and ensuring that you can complete your tasks without interruptions. This reliability is crucial for maintaining productivity and meeting the demands of your agricultural schedule.
Advanced Engineering
The NH 640 benefits from the latest advancements in agricultural machinery engineering. Each component of the tractor is meticulously designed and tested to ensure maximum durability. From the reinforced chassis to the heavy-duty axles, every part of the New Holland 640 Tractor is built to last. This advanced engineering translates to fewer repairs and replacements over the tractor’s lifespan, providing you with a cost-effective solution for your farming needs.
Resistance to Wear and Tear
Agricultural machinery often faces significant wear and tear due to the nature of farming tasks. The New Holland 640 Tractor is specifically designed to resist such wear and tear, thanks to its durable components and protective features. The tractor’s exterior is coated with high-quality paint that resists corrosion, while the internal components are made from materials that can withstand heavy use. This resistance to wear and tear ensures that the NH 640 remains in excellent condition even after years of operation.
Low Maintenance Requirements
A standout feature of the New Holland 640 Tractor is its low maintenance requirements. The tractor is designed for ease of serviceability, with accessible components and straightforward maintenance procedures. Regular maintenance is simplified, allowing farmers to focus more on their work and less on equipment upkeep. This ease of maintenance contributes to the tractor’s overall reliability, ensuring it remains a dependable part of your farming operations.
Long-Term Investment
Investing in the Fiat 640 Tractor means securing a reliable piece of equipment that will serve you well for many years. Its combination of robust construction, dependable performance, and low maintenance needs makes it a wise investment for any farm. By choosing the New Holland 640 Tractor, you are ensuring that you have a durable and reliable partner that can handle the demands of modern farming, year after year.
Available for Sale by Aeco Export Company
Exclusive Offerings
If you’re in the market for a reliable and high-performance tractor, the New Holland 640 Tractor is now available for sale through Aeco Export Company. As a leading provider of agricultural machinery, Aeco Export Company offers this exceptional tractor, ensuring you get the best in quality and performance for your farming needs. Our commitment to excellence means you can trust that the NH 640 we supply meets the highest standards of durability and efficiency. We also have the superior version of this tractor for sale, NH 640S Tractor.
Competitive Pricing
At Aeco Export Company, we understand the importance of value for money. That’s why we offer the Fiat 640 Tractor at competitive prices, making it accessible for farmers who need top-tier equipment without breaking the bank. The Fiat 640 price reflects the tractor’s robust capabilities and long-term reliability, providing you with a cost-effective solution for your agricultural operations.
Comprehensive Support
Purchasing a tractor from Aeco Export Company means more than just acquiring a piece of equipment. We provide comprehensive support to ensure your investment serves you well. Our team of experts is available to assist with any questions or concerns you may have about the NH 640. From the initial inquiry to after-sales service, we are dedicated to offering the best customer experience.
Easy and Convenient Purchasing Process
We strive to make the purchasing process as seamless as possible. Whether you’re looking for a 640 Fiat tractor for sale or specific Fiat 640 data, our knowledgeable staff can guide you through the selection process, ensuring you choose the right model and specifications for your needs. We handle all the details, from documentation to delivery, so you can focus on what matters most – your farming.
Trusted Quality
When you buy from Aeco Export Company, you are assured of the tractor’s quality and authenticity. We source our machinery directly from reputable manufacturers, ensuring that each Fiat 640 for sale is in optimal condition. Our rigorous quality checks mean you receive a tractor that performs as expected and stands up to the demands of modern farming.
Global Reach
Aeco Export Company proudly serves a global market, making it easy for farmers from different parts of the world to access the Fiat 640 Tractor. Our international shipping and logistics expertise ensure that your tractor arrives safely and promptly, no matter where you are located. We handle all aspects of export, from customs documentation to secure transport, providing a hassle-free experience for your tractor purchase.
New Holland 640 Tractor Accessories Available:
AECO offer optional tractor equipment like Roll-over Protections System (ROPS), Mirrors Front and Rear, Pintle Hooks, Front Weights, Nine-Hole Drawbars, Power take-off pulleys (PTO), Trailer Adjustable Pintle Hooks, Fiber-Glass Canopies and Hydraulic Valves.
