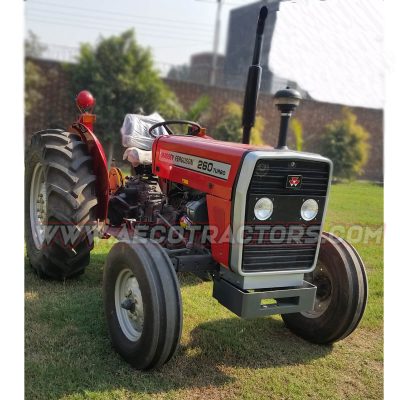

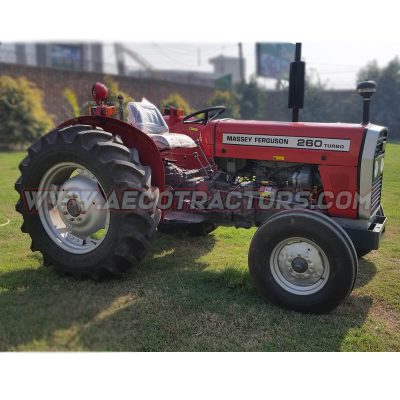

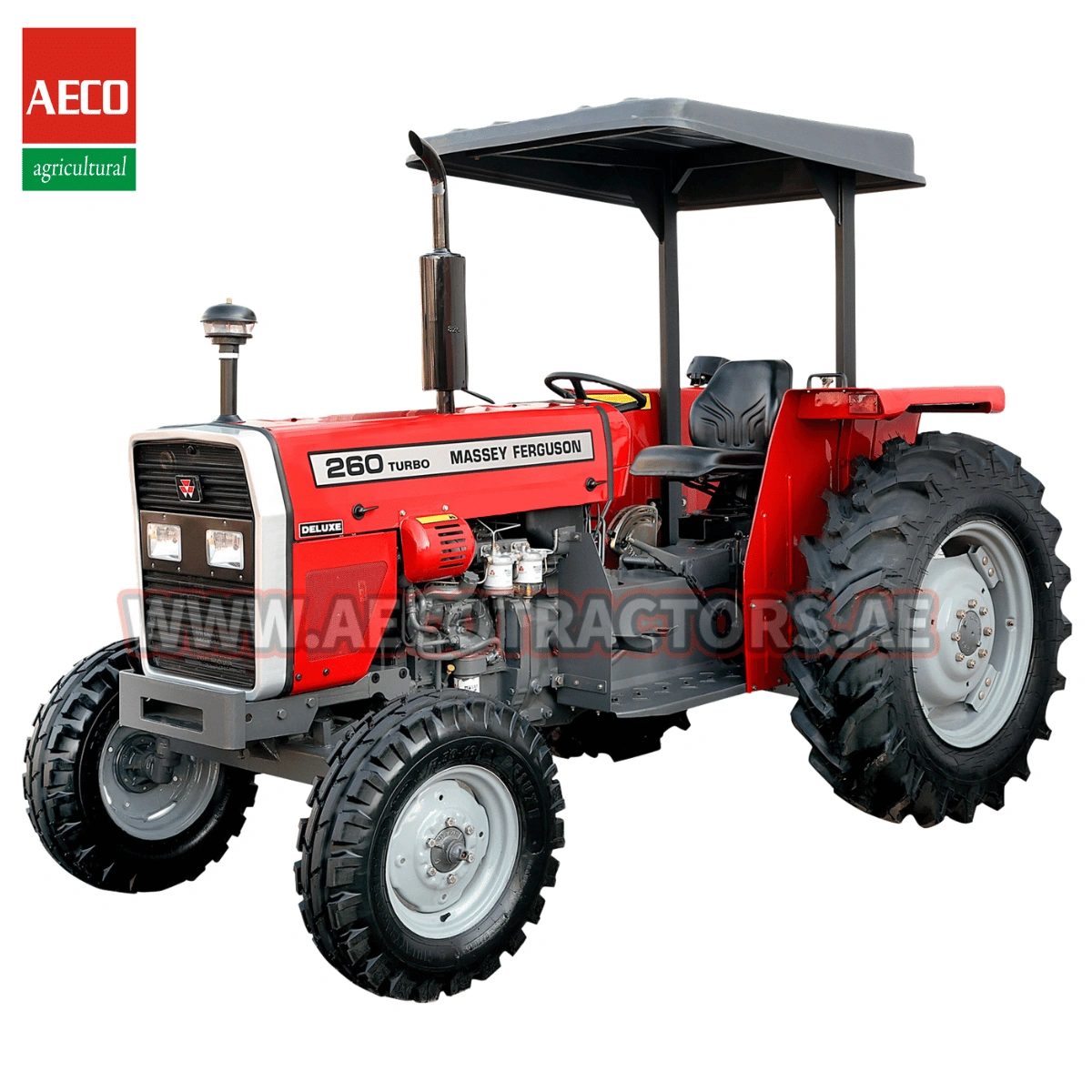

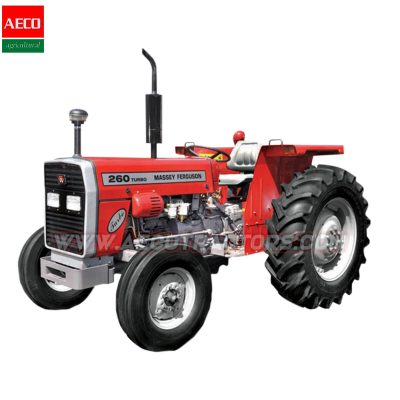

Massey Ferguson 260 Tractor Specifications
Massey Ferguson 260 Specifications
Performance
| Engine power at 2,250 rpm | 60 (B.S.) hp* |
|---|---|
| Torque at 1,600 engine rpm | 212 Nm |
| PTO power at rated engine speed | 48.0 hp** |
*Certified to BS AU 141a: (1971).
**Manufacturer’s estimate.
Engine
| Type | Diesel T3.1524 |
|---|---|
| Number of cylinders | 3 |
| Injection | Direct |
| Bore | 91.5 mm |
| Stroke | 127 mm |
| Capacity | 2.5 litres |
| Aspiration | Turbo |
| Compression ratio | 15.5:1 |
| Starting aid | Thermostart |
| Throttle control | Hand and foot |
| Cooling | Water |
| Air cleaner type | Oil bath |
| Air pre-cleaner | Over bonnet, air swirl |
| Fuel filter | Dual, high capacity |
| Exhaust | Vertical muffler |
| Oil cooler | Air cooled, fin type |
| Oil drain plug | Magnetic |
Electrics
| Voltage | 12 V, negative earth |
|---|---|
| Battery | 88 Ah, maintenance free |
| Alternator | 34 A |
| Starter motor | 1.8 kW |
Clutch
| Type | Dual |
|---|---|
| Diameter | 305 × 254 mm |
Transmission
| Type | Sliding spur |
|---|---|
| Number of gears | 8 forward, 2 reverse |
Road speeds at 2,250 engine rpm with 14.9/13-28 tyres.
| Gear | Speed (km/h) |
|---|---|
| Forward 1 (first low) | 2.6 |
| Forward 2 | 3.8 |
| Forward 3 | 5.2 |
| Forward 4 | 7.0 |
| Forward 5 (first high) | 10.4 |
| Forward 6 | 15.2 |
| Forward 7 | 20.8 |
| Forward 8 | 27.9 |
| Reverse 1 (low) | 3.5 |
| Reverse 2 (high) | 14.1 |

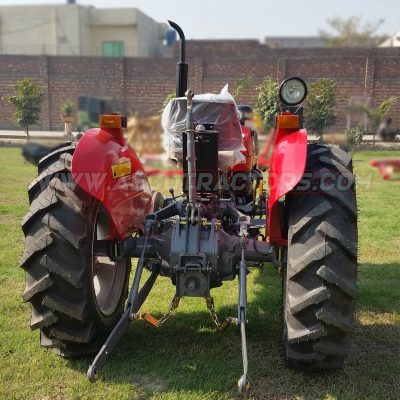

Power Take-Off
| Type | Live |
|---|---|
| Engine speed at 540 PTO rpm | 1,789 rpm |
| Shaft diameter | 35 mm |
| Number of splines | 6 |
Hydraulics
| Functions | Draft control, position control, response control and constant pumping |
|---|---|
| Pump type | Reciprocating Ferguson pump |
| Oil flow | 16.7 L/min |
| Pressure | 21.2 MPa at normal operating temperature |
| Lift capacity at lower link ends | 2,145 kg with lower links horizontal |
| Lower links | Category I & II interchangeable balls; adjustable heavy-duty yoke tubes |
Steering
| Type | Manual |
|---|
Front Axle
| Type | Box section, adjustable |
|---|
Rear Axle & Brakes
| Axle type | Straddle with epicyclic reduction unit |
|---|---|
| Brake type | Oil immersed, multi-disc |
| Brake actuation | Mechanical |
| Parking brake | Hand lever operated |
Instrumentation
| Gauges | Tachometer, hourmeter, fuel level, water temperature and battery condition |
|---|---|
| Warning lights | Direction indicator, electric charge, headlight main beam and low engine oil pressure indication |
Tyres
| Front | 7.50-16 |
|---|---|
| Rear | 14.9/13-28 |
Track Adjustment
| Front axle | 1,390–2,170 mm |
|---|---|
| Rear axle | 1,776–2,200 mm |
Weight & Dimensions
Approximate figures with 7.50-16 front and 14.9/13-28 rear wheels, with full fuel, oil and water.
| Gross weight | 1,925 kg |
|---|---|
| Overall length | 3,252 mm |
| Overall width | 1,872 mm |
| Wheelbase | 1,884 mm |
| Height over exhaust | 2,210 mm |
| Height over steering wheel | 1,455 mm |
| Turning circle without brakes | 7,370 mm |
| Ground clearance under engine sump | 410 mm |
Capacities
| Fuel tank | 50 L |
|---|---|
| Engine sump | 6.8 L |
| Cooling system | 12.5 L |
| Hydraulic system | 38.0 L |
| Oil bath air cleaner | 0.75 L |
| Steering box | 0.75 L |
Standard Equipment
Weight frame, standard toolbox with set of tools, top link, USB port, top link end Category I & II balls, check chains, spring suspension seat, flat top fenders, rear-view mirror, operator’s and service manual, and wider heat shield.
Optional Equipment
Swinging drawbar, front weights, pintle hook and 9-hole drawbar.
Operator Area
| Seat | Cushioned |
|---|---|
| Fenders | Flat top |
| Tool | Standard |
Farming with the Massey Ferguson 260 Tractor
The Massey Ferguson 260 Tractor is an exceptional machine that combines power, efficiency, and versatility, making it a valuable asset for any agricultural operation. Whether you are running a small family farm or a large-scale commercial enterprise, the MF 260 delivers the performance and reliability you need to achieve outstanding results. But if you’re looking for more engine power in the 200 series in similar price bracket then do check the Massey Ferguson 290 Tractor.
Robust Engine Performance
The heart of the Massey Ferguson 260 Tractor is its powerful 4-cylinder, 2.7L Perkins engine, designed to provide a robust 60 HP. This high-performance engine ensures that the MF 260 can handle a variety of farming tasks with ease. From plowing and tilling to planting and harvesting, the MF 260 is built to deliver consistent power and performance.
The engine’s fuel efficiency is a standout feature, allowing farmers to work longer hours without frequent refueling. This not only enhances productivity but also helps reduce operational costs, making the MF 260 a cost-effective choice for any farm. The advanced cooling system ensures that the engine remains at optimal temperatures, preventing overheating and extending the life of the tractor.
Advanced Transmission and Versatile Hydraulics
The Massey Ferguson 260 is equipped with an 8-speed gearbox, providing a versatile range of speeds to suit different tasks. The smooth-shifting transmission ensures precise control, allowing operators to navigate various terrains and perform intricate maneuvers with ease. Whether you need slow, controlled speeds for planting or higher speeds for transporting goods, the MF 260 delivers the flexibility required for efficient farming.
The advanced hydraulic system of the MF 260 features a lifting capacity of up to 2,170 kg, making it capable of handling a wide range of Massey Ferguson implements and attachments. The dual hydraulic pumps ensure smooth and efficient operation of all hydraulic functions, enhancing the tractor’s overall versatility. This means you can easily switch between different tasks without any hassle, maximizing your productivity.
Comfortable and Ergonomic Design
Long hours in the field require a tractor that prioritizes operator comfort, and the Massey Ferguson 260 does just that. The spacious and ergonomic driver’s area provides a comfortable working environment, reducing fatigue and improving productivity. The adjustable seat, intuitive controls, and excellent visibility ensure that operators can work efficiently and comfortably, even during extended periods.
The MF 260’s user-friendly control panel makes it easy for operators to learn and master the tractor’s functions quickly. This ease of use is particularly beneficial for farms with multiple operators or for those new to the equipment. By minimizing the learning curve, the Massey Ferguson 260 helps maintain high productivity levels on your farm.
Built for Durability and Low Maintenance
Durability is a hallmark of the Massey Ferguson brand, and the MF 260 is no exception. Constructed with high-quality materials and advanced manufacturing techniques, this tractor is designed to withstand the rigors of daily farming activities. Its robust construction and reliable components ensure that it remains operational for years, providing an excellent return on investment.
The MF 260 is also engineered for low maintenance, with routine checks and servicing being straightforward and easy to perform. The availability of genuine parts and widespread service centers means you can easily access support whenever needed, ensuring your operations run without interruption. This focus on durability and low maintenance makes the Massey Ferguson 260 a cost-effective choice for all your agricultural needs.
Versatility in Attachments and Implements
The versatility of the Massey Ferguson 260 is further enhanced by its compatibility with a wide range of attachments and implements. Whether you need a front-end loader, backhoe, mower, or planter, the MF 260 can be easily equipped to meet your specific needs. This adaptability makes it an indispensable tool for diverse agricultural operations, reducing the need for multiple machines and simplifying farm management.
By investing in the Massey Ferguson 260, you gain access to a powerful machine that can perform multiple functions, saving you time and money. This versatility allows you to tackle various tasks with ease, optimizing your farming operations and improving overall efficiency.
Environmentally Friendly Operation
In today’s world, sustainable farming practices are more important than ever. The Massey Ferguson 260 Tractor is designed with environmental considerations in mind. Its efficient engine minimizes fuel consumption and emissions, contributing to a greener and more sustainable farming operation. By choosing the MF 260, you are investing in a tractor that supports environmentally responsible agriculture.
The tractor’s ability to perform multiple tasks with a single machine also means fewer emissions compared to operating multiple pieces of equipment. This efficiency helps reduce your farm’s carbon footprint, aligning with modern sustainability goals and practices.
Why Choose the Massey Ferguson 260 Tractor?
There are several compelling reasons to choose the Massey Ferguson 260 Tractor for your farming needs:
- Proven Reliability: Massey Ferguson tractors are known for their reliability and long-lasting performance, ensuring you get the most out of your investment.
- Cost-Effective Operation: The MF 260’s efficient fuel consumption and low maintenance requirements make it a cost-effective solution for all farming needs.
- Versatility: From plowing and planting to hauling and mowing, the MF 260 can handle a wide variety of tasks, making it a versatile asset for any farm.
- Comfort and Ease of Use: Designed with the operator in mind, the MF 260 ensures a comfortable and user-friendly experience, even during long hours of work.
- Durability: Built to last, the MF 260’s robust construction and quality materials ensure it remains a valuable tool on your farm for years to come.
Specifications of MF 260 in brief
- Engine: 3 Cylinder, 2.7L Perkins Engine
- Horsepower: 60 HP
- Transmission: 8-speed gearbox
- Hydraulic Lifting Capacity: 2,170 kg
- Fuel Tank Capacity: 47 liters
- Weight: 1,920 kg
- Wheelbase: 1,970 mm
For more detailed specifications, explore our dedicated specifications section above. And you can also read more on our website about the 60 horsepower tractor, Massey Ferguson 360 Turbo Tractor.
How to Purchase
Are you ready to enhance your farming operations with the Massey Ferguson 260 Tractor? For pricing details and to discuss your specific needs, contact us on WhatsApp today. Our team is ready to assist you with any questions and help you make the best decision for your farm.
Conclusion
The Massey Ferguson 260 Tractor is more than just a piece of farm equipment – it’s a partner in your farming success. Its combination of power, efficiency, and versatility makes it an invaluable asset for any agricultural operation. By choosing the MF 260, you are investing in a brand new farm tractor that delivers consistent performance, reduces operational costs, and supports sustainable farming practices.
Don’t miss out on the opportunity to transform your farm with the Massey Ferguson 260. Reach out to us on WhatsApp for pricing and further information. Experience the difference that quality and performance can make with the Massey Ferguson 260 Tractor. Explore our range of Massey Ferguson tractors.
FAQs:
The MF 260 typically offers around 60 horsepower, sufficient for a variety of farming needs.
The Massey Ferguson 260 is designed with a fuel-efficient engine that helps reduce operating costs by consuming less fuel while maintaining optimal performance.
Key features include power steering, an optional turbocharged engine, a robust hydraulic system, and compatibility with various farming attachments.
The price varies based on new or used condition and specific dealer offerings but is designed to be affordable.
