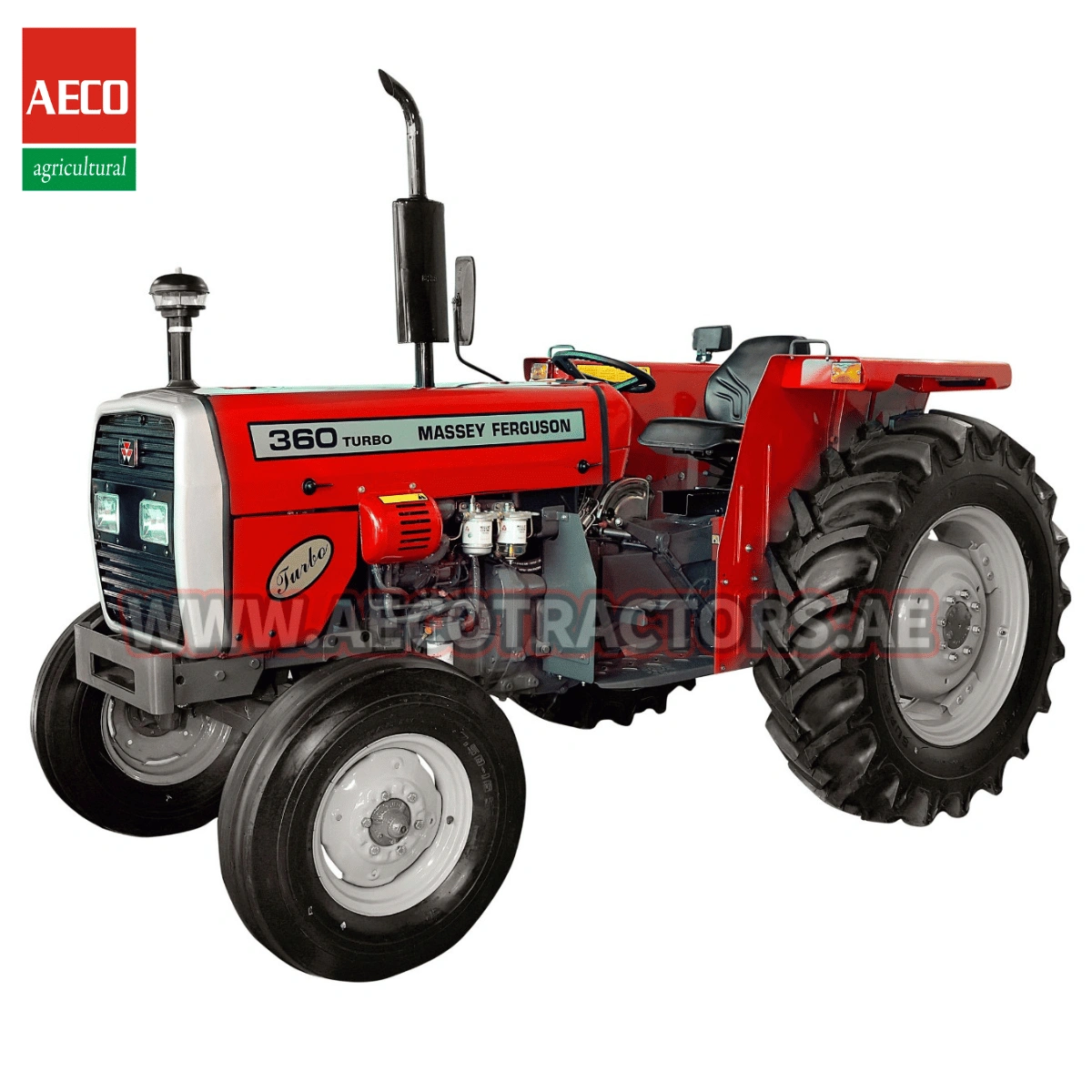

Massey Ferguson 360 Tractor Specifications
Massey Ferguson 360 Specifications
Performance
| Engine power at 2,200 rpm | 60 (B.S.) hp* |
|---|---|
| Torque at 1,400 engine rpm | 221 Nm |
| PTO power at rated engine speed | 48 hp** |
*Certified to BS AU 141a.
**Manufacturer’s estimate.
Engine
| Type | Diesel / T 3.1524 |
|---|---|
| Number of cylinders | 3 |
| Injection | Direct |
| Bore | 91.4 mm |
| Stroke | 127 mm |
| Capacity | 2.5 litres |
| Aspiration | Turbo |
| Compression ratio | 16.5:1 |
| Starting aid | Thermostart |
| Throttle control | Hand and foot |
| Cooling | Water |
| Air cleaner type | Oil bath |
| Air pre-cleaner | Over bonnet, air swirl |
| Fuel filter | Dual, high capacity |
| Exhaust | Vertical |
| Oil cooler | Water cooled |
Electrics
| Voltage | 12 V, negative earth |
|---|---|
| Battery | 118 Ah |
| Alternator | 45 A |
| Starter motor | 2.2 kW |
Clutch
| Type | Dual |
|---|---|
| Diameter | 305 × 254 mm |
Transmission
| Type | Sliding spur |
|---|---|
| Number of gears | 8 forward, 2 reverse |
Road speeds at 2,200 engine rpm.
| Gear | Speed (km/h) |
|---|---|
| Forward 1 (first low) | 2.6 |
| Forward 2 | 3.8 |
| Forward 3 | 5.2 |
| Forward 4 | 7.0 |
| Forward 5 (first high) | 10.4 |
| Forward 6 | 15.2 |
| Forward 7 | 20.8 |
| Forward 8 | 28.0 |
| Reverse 1 (low) | 3.5 |
| Reverse 2 (high) | 14.1 |
Power Take-Off
| Type | Live |
|---|---|
| Engine speed at 540 PTO rpm | 1,789 rpm |
| Shaft diameter | 35 mm |
| Number of splines | 6 |
Hydraulics
| Functions | Draft control, position control, response control and constant pumping |
|---|---|
| Pump type | Reciprocating Ferguson pump |
| Oil flow | 16 L/min |
| Pressure | 21.2 MPa at normal operating temperature |
| Lift capacity with lower links horizontal | 2,145 kg |
| Lower links | Category I & II with interchangeable balls |
Front Axle
| Drivetrain | 2WD |
|---|---|
| Type | Non-driven front axle |
Steering
| Type | Hydrostatic |
|---|
Rear Axle & Brakes
| Axle type | Straddle with epicyclic reduction unit |
|---|---|
| Brake type | Oil immersed, multi-disc |
| Brake actuation | Hydraulic |
| Differential lock | Mechanical |
| Parking brake | Hand lever operated |
Instrumentation
| Gauges | Tachometer, hourmeter, fuel level, battery condition and water temperature |
|---|---|
| Warning lights and accessories | Direction indicators, electric charge, headlight main beam, low engine oil pressure and auxiliary socket |
Tyres
| Front | 7.50-16 |
|---|---|
| Rear | 14.9/13-28 |
Track Adjustment
| Front axle | 1,430 mm |
|---|---|
| Rear axle | 1,530 mm |
Weight & Dimensions
| Gross weight | 2,370 kg |
|---|---|
| Overall length | 3,485 mm |
| Overall width | 1,890 mm |
| Wheelbase | 2,130 mm |
| Height over exhaust | 2,220 mm |
| Height over steering wheel | 1,585 mm |
| Turning circle with brakes | 4,690 mm |
| Ground clearance under gearbox | 355 mm |
| Ground clearance under 4WD front axle | 290 mm |
Capacities
| Fuel tank | 48.0 L |
|---|---|
| Engine sump | 6.96 L |
| Cooling capacity | 11.7 L |
| Hydraulic system | 42 L |
| Power steering reservoir | 1.75 L |
| Oil bath air cleaner | 0.75 L |
| Brake oil | 0.25 L |
| 4WD front axle differential | 6.5 L |
| Hub, each side | 0.7 L |
Standard Equipment
Weight frame without weights, standard toolbox with set of tools, top link, top link end Category I & II balls, check chains, spring suspension seat, flat top fenders, and operator’s and service manual.
Optional Equipment
Front end weights, swinging drawbar, sun canopy, pintle hook, 9-hole drawbar, Roll Over Protection System (ROPS), and hydraulic couplings with spool valve.
Operator Area
| Seat | Cushioned |
|---|---|
| Fenders | Flat top |
| Tool | Standard |

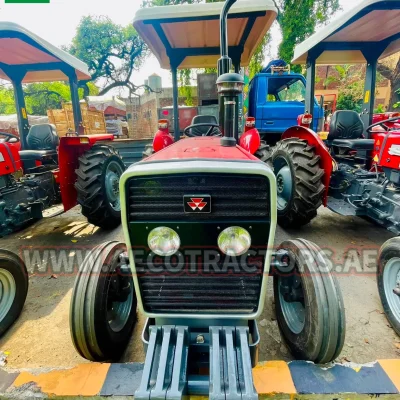

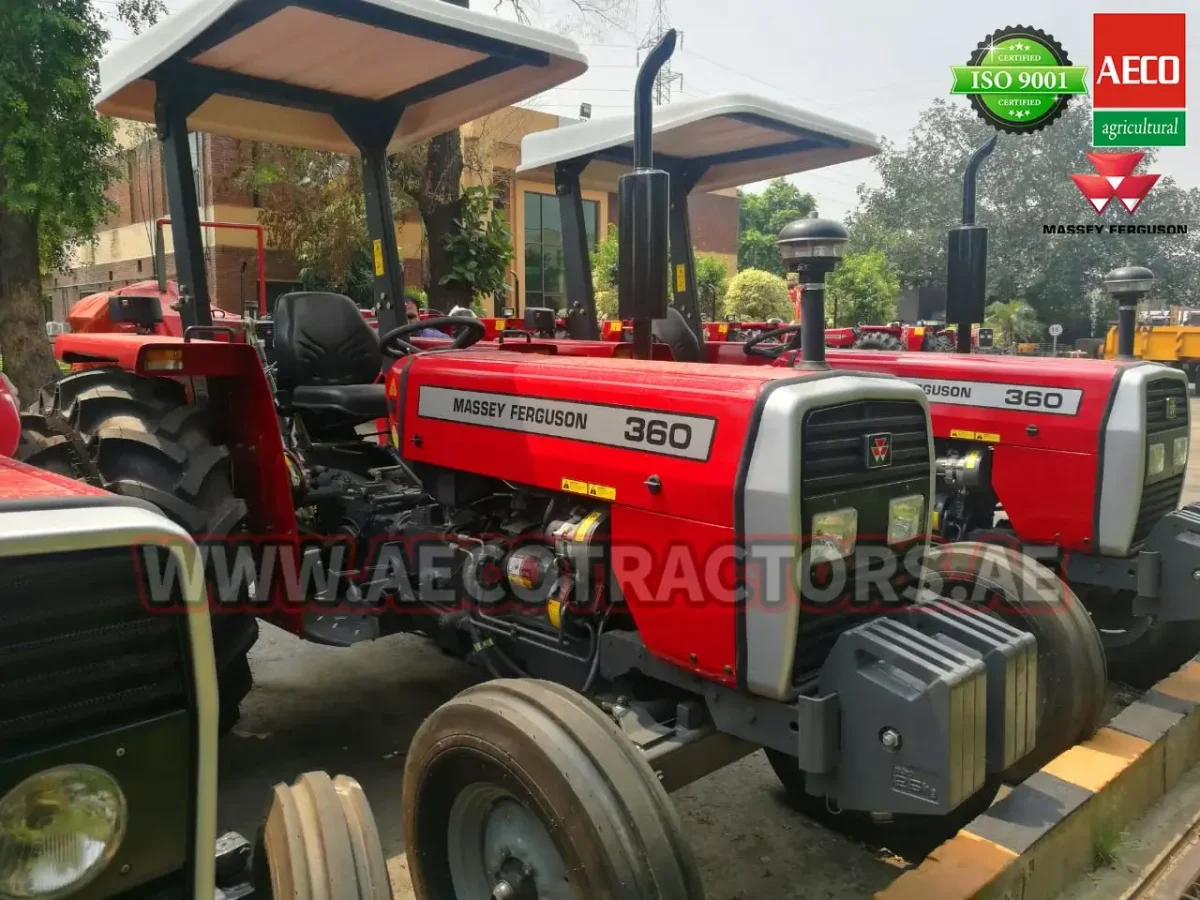

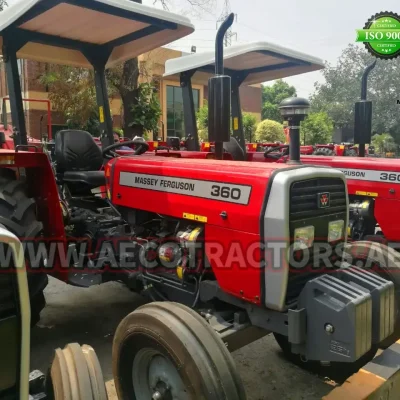

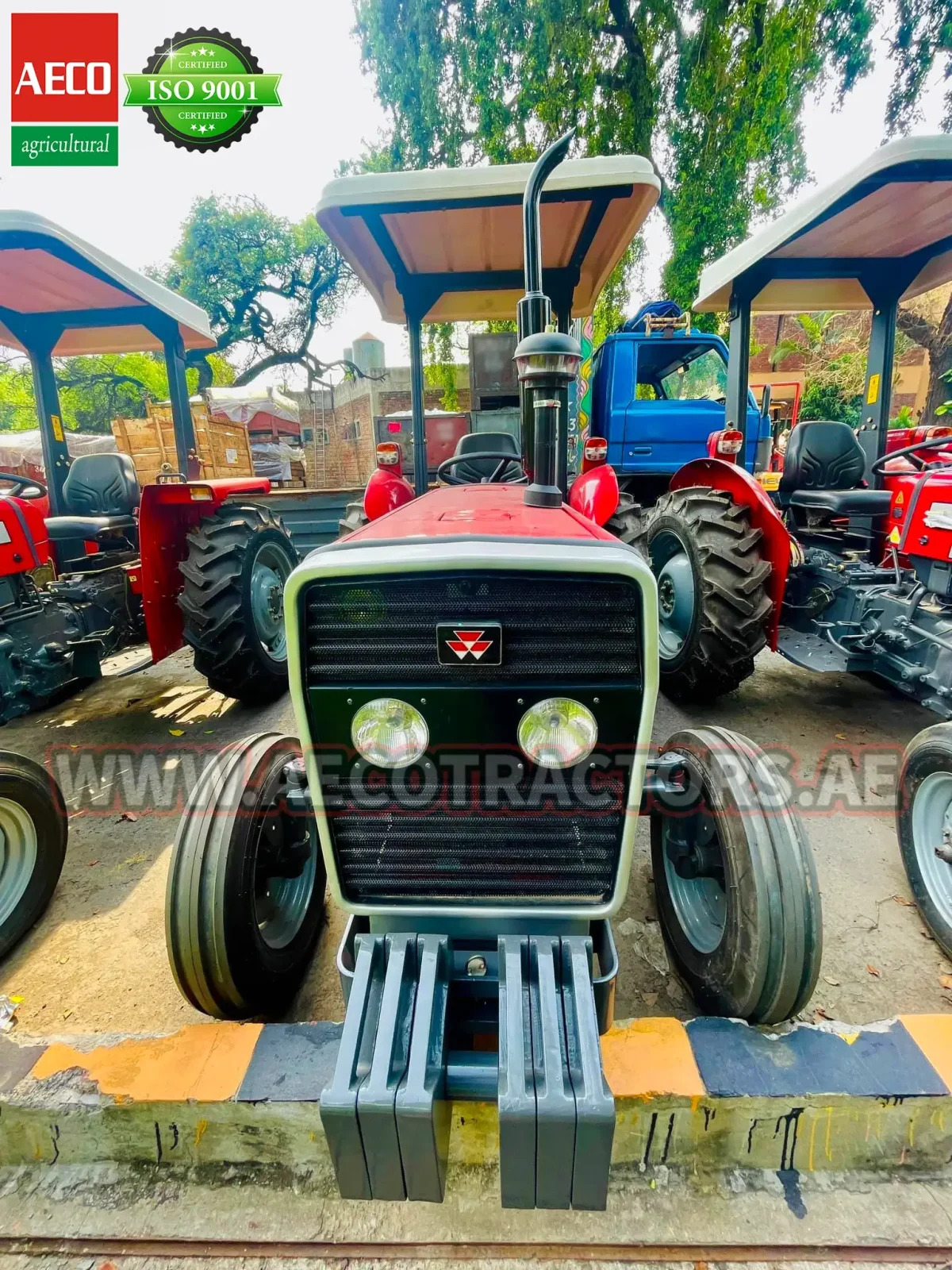

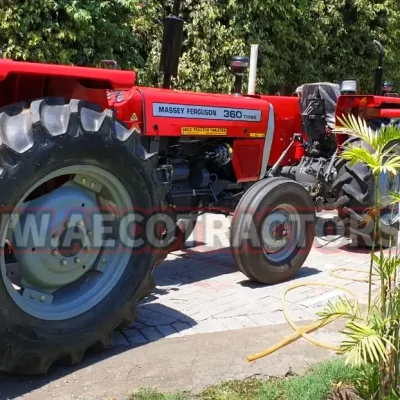

Massey Ferguson 360 Tractor For Sale | MF 360 2WD & 4WD Tractors: The Ultimate Workhorse for Modern Farming
Welcome to your detailed guide on the Massey Ferguson 360 tractor, a highly sought-after model known for its versatility, power, and efficiency. Whether you operate a small family farm or a large agricultural enterprise, the MF 360 offers configurations to suit any need—available in both 2WD and 4WD models. This guide will provide you with comprehensive insights into why the Massey Ferguson 360 is an excellent choice and how purchasing from Aeco Export Company ensures you receive top-notch service and reliability.
Why Choose the Massey Ferguson 360?
Unmatched Versatility and Performance
The Massey Ferguson 360 excels in a variety of agricultural tasks, from basic field work to more demanding operations, thanks to its powerful engine options, including the Massey Ferguson 360 turbo. Available in both MF 360 2WD and MF 360 4WD configurations, it provides the flexibility to tackle different terrains and conditions with ease.
Engine Efficiency and Power
With a robust engine that delivers significant horsepower, the Massey Ferguson 360 hp stands out in its class. The tractor’s engine efficiency ensures that it performs optimally while maintaining low fuel consumption and operational costs.
In-Depth Look at MF 360 Specifications
Comprehensive Specifications
The Massey Ferguson 360 specs showcase its superior design and engineering, featuring advanced hydraulics, durable transmission, and a comfortable operator station. These specifications are designed to enhance productivity and ensure long-term durability.
Enhanced Capabilities with Attachments
The versatility of the MF 360 is further enhanced by its compatibility with a range of attachments. This adaptability makes it suitable for various farming needs, enhancing its utility and performance on any farm.
MF 360 Models: 2WD and 4WD

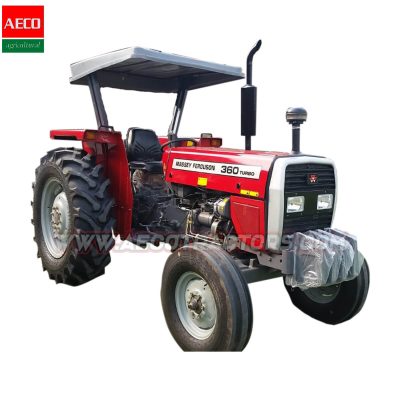

Exploring the MF 360 2WD
The MF 360 2WD model is perfect for flat terrains and general farming activities, offering agility and sufficient power in a more economical package. It’s ideal for farmers who need a reliable tractor that provides essential functions without the added cost of four-wheel drive.
Advantages of the MF 360 4WD
For more challenging terrains and tougher agricultural tasks, the MF 360 4WD provides enhanced traction and power distribution. This model is particularly valuable for working in variable weather conditions and on uneven land, ensuring that productivity remains high regardless of external factors.
Why Purchase From Aeco Export Company?
Trusted Expertise and Reliable Service
At Aeco Export Company, we pride ourselves on our extensive knowledge and commitment to customer satisfaction. When you purchase a Massey Ferguson 360, you not only get a tractor but also a partnership that extends beyond the sale. Our experts are ready to assist you in choosing the right model for your needs and provide ongoing support.
Competitive Pricing and Comprehensive Support
We offer the most competitive pricing on the Massey Ferguson 360 tractor for sale, including both the MF 360 4WD for sale and the MF 360 2WD models. Our pricing strategy is complemented by comprehensive after-sales support, ensuring that your tractor continues to operate efficiently for years to come.
Global Reach and Easy Accessibility
Aeco Export Company provides a seamless purchasing experience, no matter where you are located. With our global shipping capabilities, we can deliver your Massey Ferguson 360 directly to your farm, handling all logistics from start to finish.
Enhancing Your Agricultural Operations with the MF 360
User Testimonials and Success Stories
Hear from our satisfied customers who have experienced the transformation in their farming operations thanks to the Massey Ferguson 360. Their testimonials underscore the tractor’s reliability, ease of use, and the exceptional customer service provided by Aeco Export Company.
Long-Term Benefits and ROI
Investing in the Massey Ferguson 360 from Aeco Export Company means investing in your farm’s future. The robust construction, advanced features, and efficient performance of the tractor ensure a high return on investment through increased productivity and reduced downtime.
The Massey Ferguson 360 tractor, available for sale in both 2WD and 4WD from Aeco Export Company, represents the pinnacle of farming machinery. It combines state-of-the-art technology, robust performance, and affordability. Choose Aeco Export Company as your trusted partner and secure a tractor that will drive your agricultural business towards greater productivity and sustainability.
Choose Aeco Export Company for your Massey Ferguson 360 — where your farming needs are met with expertise and exceptional care.
TRACTOR OPTIONAL EQUIPMENT
We provide optional tractor equipment like Trailer Hooks, Fiber-Glass Canopies, Front Weights, Power take-off pulleys (PTO), Mirrors Front and Rear, Hydraulic Valves, Nine-Hole Drawbars, Pintle Hooks and Roll-over Protections System (ROPS).
FAQs
The Massey Ferguson 360 is renowned for its versatility, robust engine performance, and efficiency. Key features include a choice between 2WD and 4WD configurations, powerful turbocharged engines in some models, advanced hydraulic systems, and compatibility with various attachments. This makes it highly adaptable for different farming tasks.
The Massey Ferguson 360 tractor is equipped with an engine that delivers around 60 horsepower, making it powerful enough to handle a variety of agricultural tasks with ease.
The MF 360 2WD model is typically used for general farming tasks on flat terrains, offering cost efficiency and simplicity. The MF 360 4WD version provides enhanced traction and power distribution, ideal for challenging terrains and tough farming conditions, ensuring better handling and productivity on uneven fields and under various weather conditions.
Yes, the Massey Ferguson 360 can be equipped with a variety of attachments to enhance its utility. From ploughs to loaders, each attachment is designed to integrate seamlessly with the tractor, extending its capabilities and making it suitable for a wider range of tasks.
Aeco Export Company offers competitive pricing, expert advice, and comprehensive customer service. Purchasing from us ensures you get a genuine Massey Ferguson 360 backed by a full support package. We provide global shipping, making it easy for you to receive your tractor wherever you are located. Our commitment to customer satisfaction and our extensive experience in agricultural machinery make us the best choice for your farming needs.
